NX-1200/1300 VHF/UHF TRANSCEIVERS

ONE-“K”-FITS-ALL: A SINGULAR SOLUTION

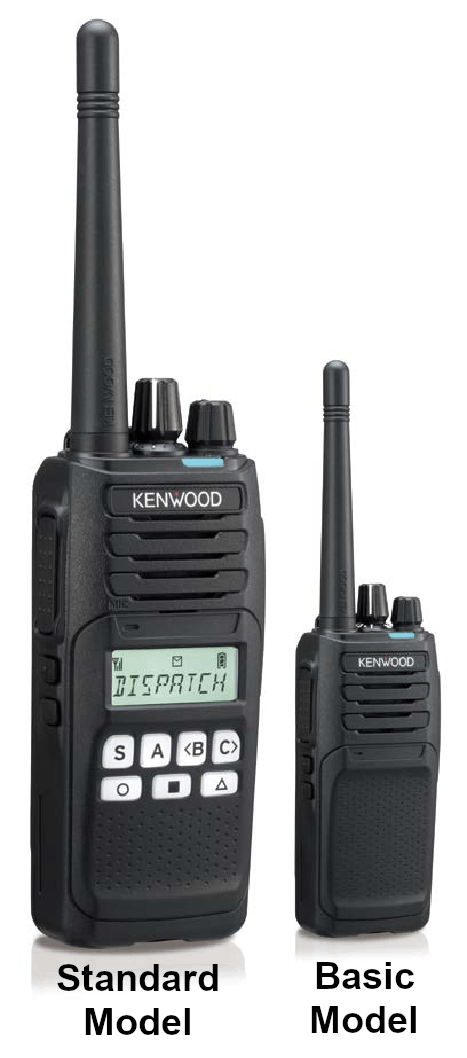

If you are thinking of harnessing the latest digital protocols – NXDN or DMR – to enhance business efficiency or FM analog for its simplicity, the NX-1200/1300 has you covered. Our One-“K”-Fits-All solution offers the widest selection of two-way radios for everyday use. The model matrix also includes basic and keypad variations, with or without a high-contrast backlit LCD.

Other features include a 7-colour LED indicator and the popular KENWOOD 2-pin audio accessory connector. Plus, mixed-mode operation ensures seamless integration with legacy radios while smoothing the onward migration path to digital. But whatever your specific needs, audio quality is what determines clear voice communications – which is why KENWOOD radios are used under the most gruelling conditions, like the cockpit of a racing car.

Thanks to our extensive experience with professional systems, reliability is second to none. So whatever your radio requirements, KENWOOD’s NX-1200/1300 offers a single platform that’s right for you.

GENERAL FEATURES

• Wide variations, “One” platform: To meet various demands — NXDN or DMR digital CAI and FM analog only models are available
• Choose from direct & intuitive LCD with standard keypad or basic enclosures
• Easy visible Display: 8-digit LCD models featuring high-contrast, white backlit LCD
• Large 7-Colour LED indicator on the top panel • Selective Power-on LED

• Selective Call Alert LED

• Battery Level Indication

• Multi-status function indication

• RF output power 5W both on VHF/UHF
• Wide band UHF 70MHz coverage
• Renowned KENWOOD Audio Quality:
• TX/RX audio profile with optimisable digital processor

• Audio Equaliser: Flat, High, Low
• Auto Gain Control: On, High, Low, Off • Noise Suppressor
• Microphone type settings

• Multiple Scan Functions; Dual Priority, Single Priority, Single Zone, Multi, Normal Scan
• VOX & PTT –triggered Semi- VOX, Voice-operated TX
• Emergency Function: Customisable Emergency Profile
• Lone Worker
• Max / Min Volume setting & Volume control
• Voice Announcement
• Remote Stun / Kill / Check
• Front Panel Programming Mode
• (for Keypad model)
• Electronic Serial Number (ESN)
• MIL-STD-810 C/D/E/F/G
• IP54 and IP55
• Intrinsically safe option (Available later)

DIGITAL – NXDN

 • FDMA – Very narrow 6.25 kHz & narrow 12.5 kHz bandwidths

 • NXDN Conventional Operation

 • Site Roaming
• Digital / Analog Mixed mode
• Group / Individual Call

 • Status / Short data, Paging Call
• Remote Stun / Kill, Monitor, Check & Control

 • Digital Bit Scrambler
• Late Entry
• Over-the-Air Alias (OAA)

DIGITAL – DMR

 • TDMA 2-slot 12.5 kHz bandwidth equivalent to 6.25 kHz very narrow bandwidth

 • DMR Tier II Conventional Operation

 • Site Roaming
• DMR Auto Slot Select
• Dual Slot Direct Mode

 • Digital / Analog Mixed mode
• Call Interruption
• Group / Individual Call
 • Status / Short data, Paging Call
• Remote Stun / Kill, Monitor, Check & Control

 • Enhanced Encryption (ARC4)

 • Digital Bit Scrambler
• Late Entry
• Over-the-Air Alias (OAA)
